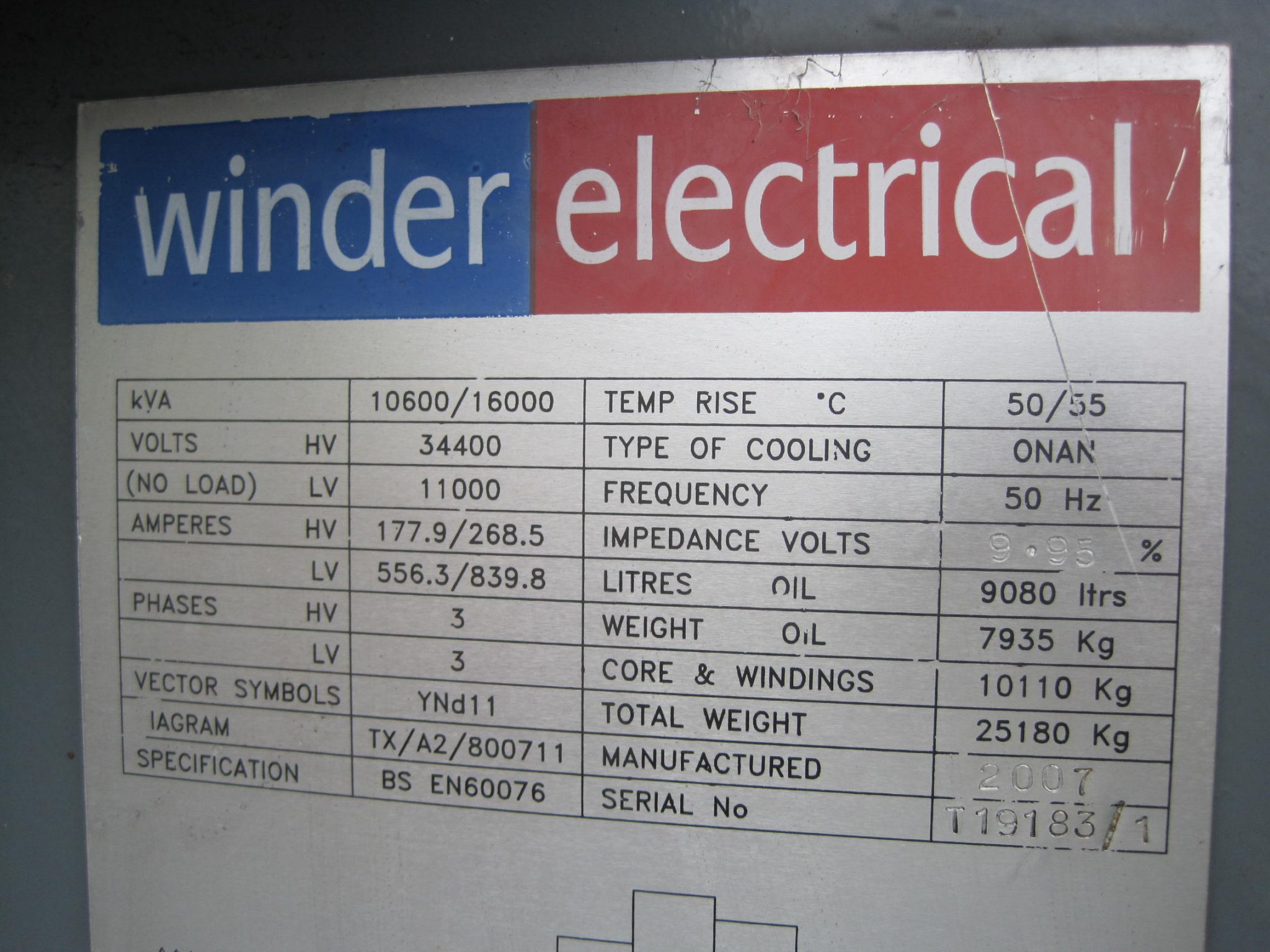

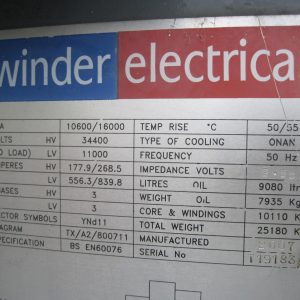

Serial No. T19188/1
Specification. BS EN 60076
Year. 2007
Condition. New

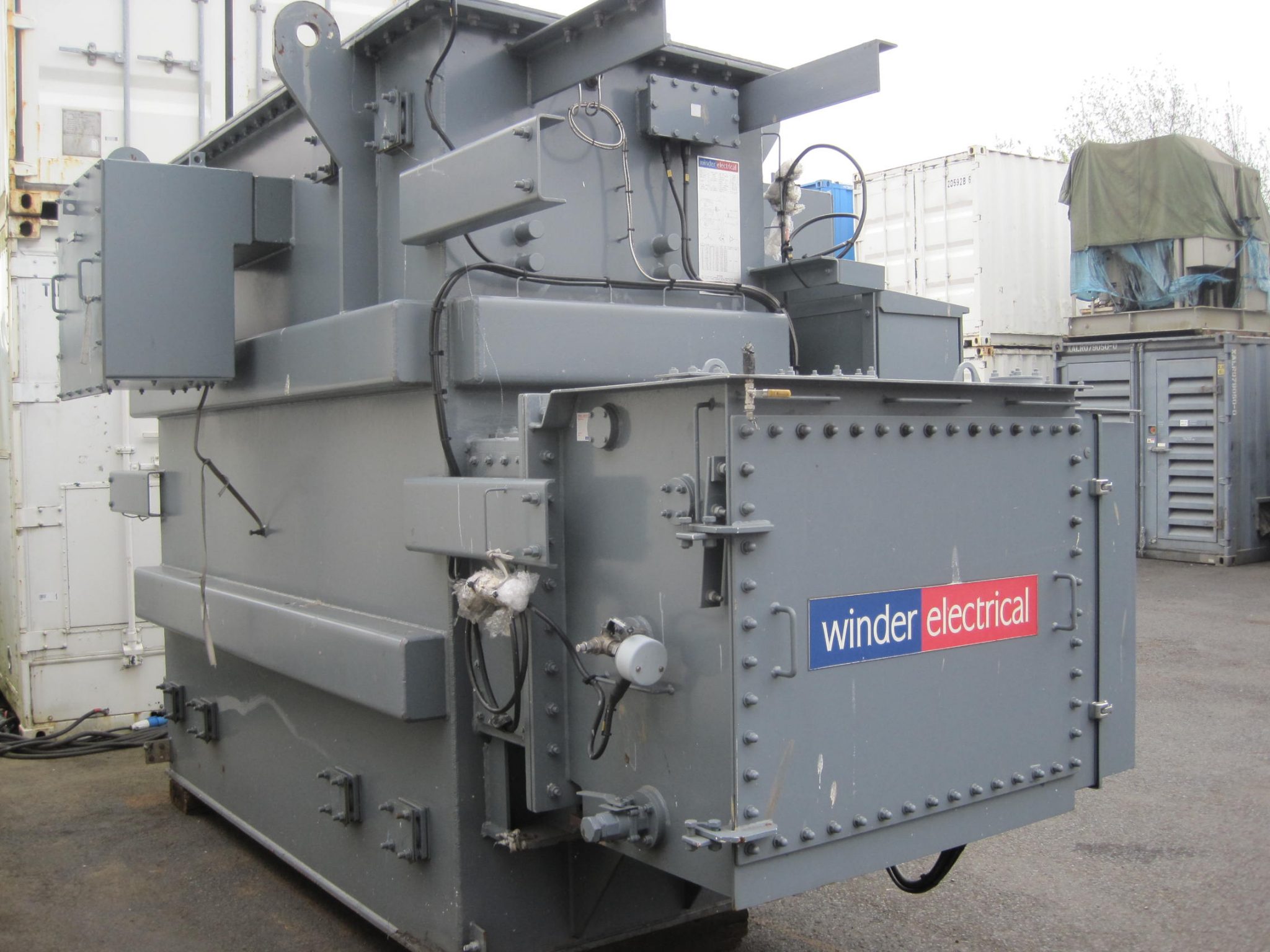

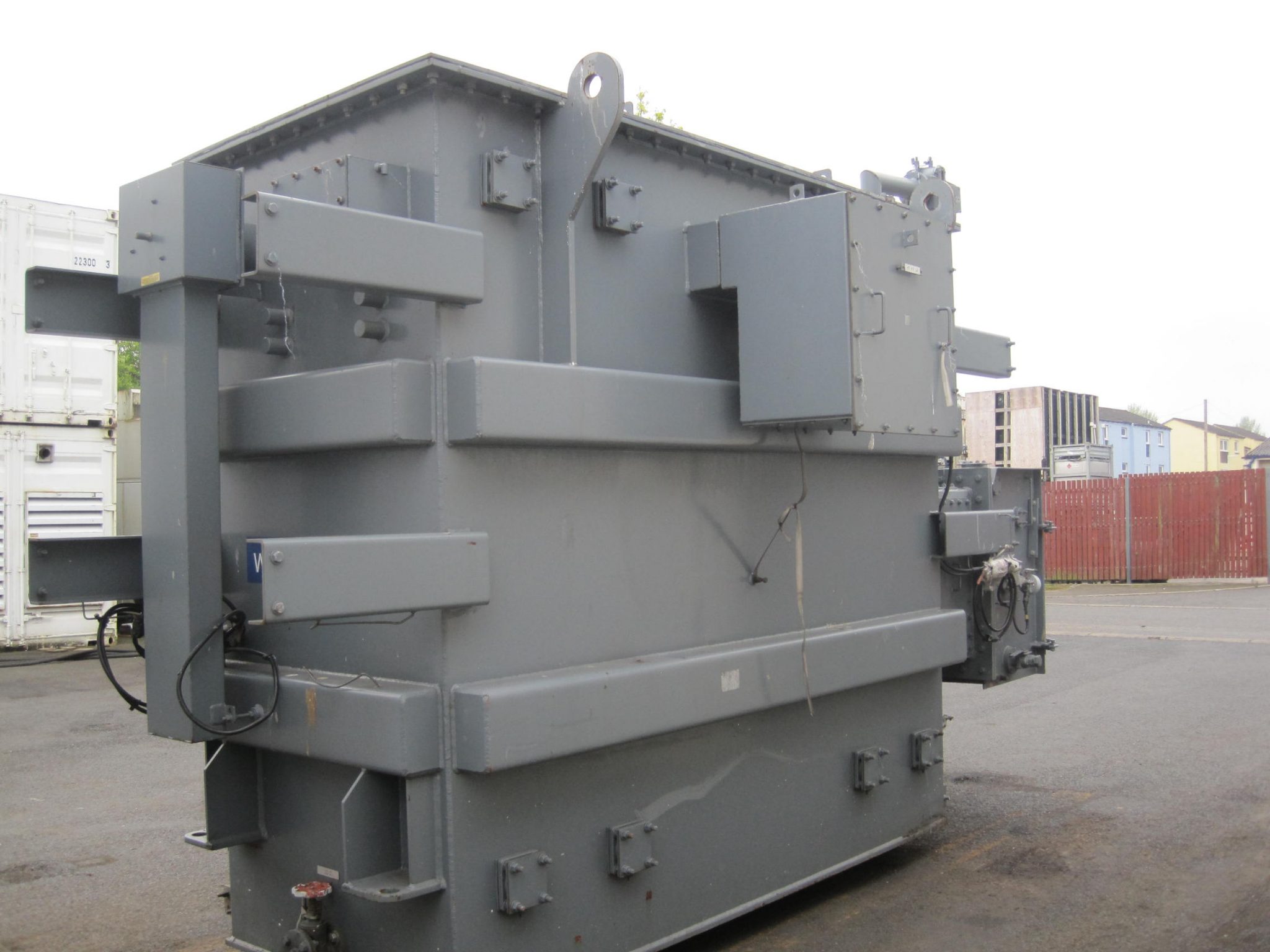

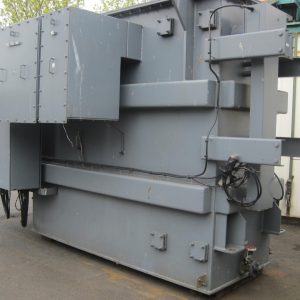

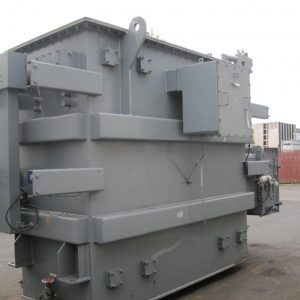

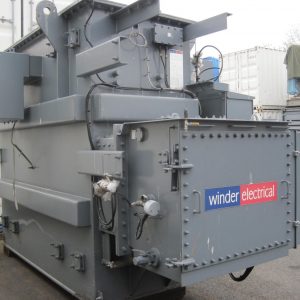

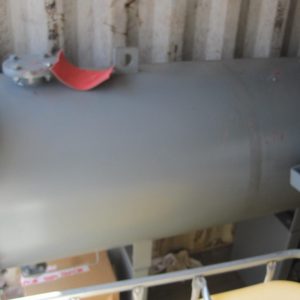

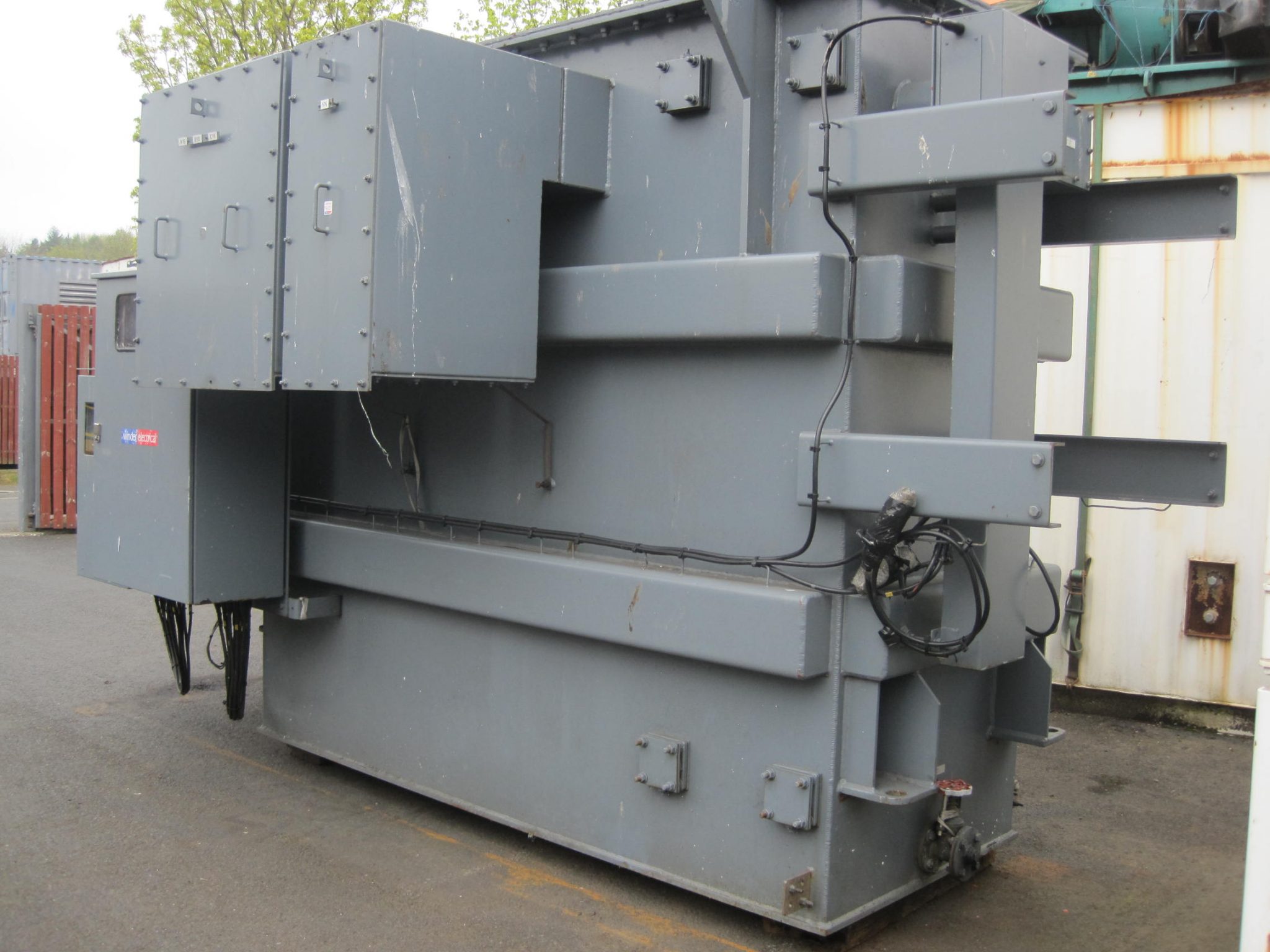

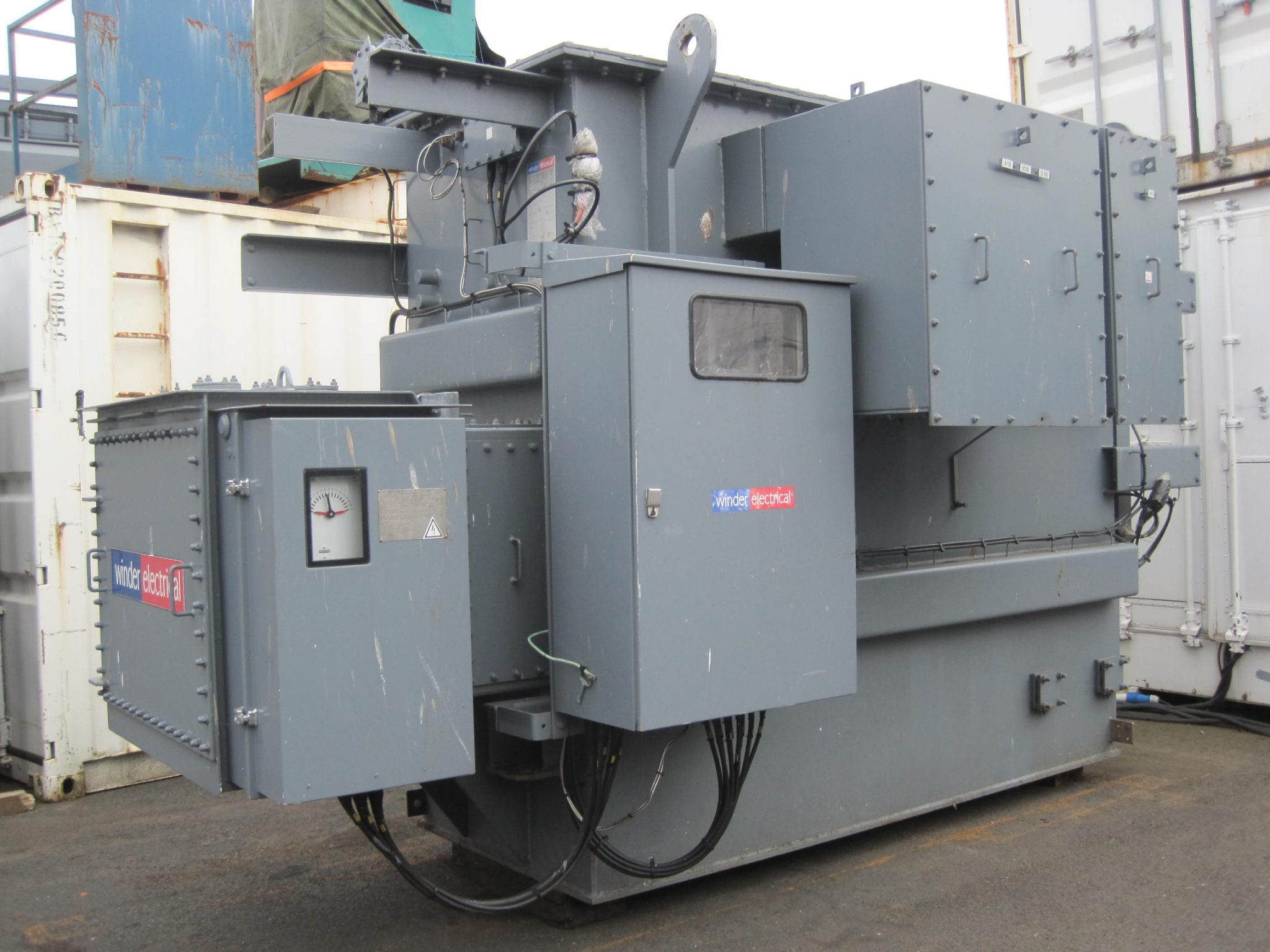

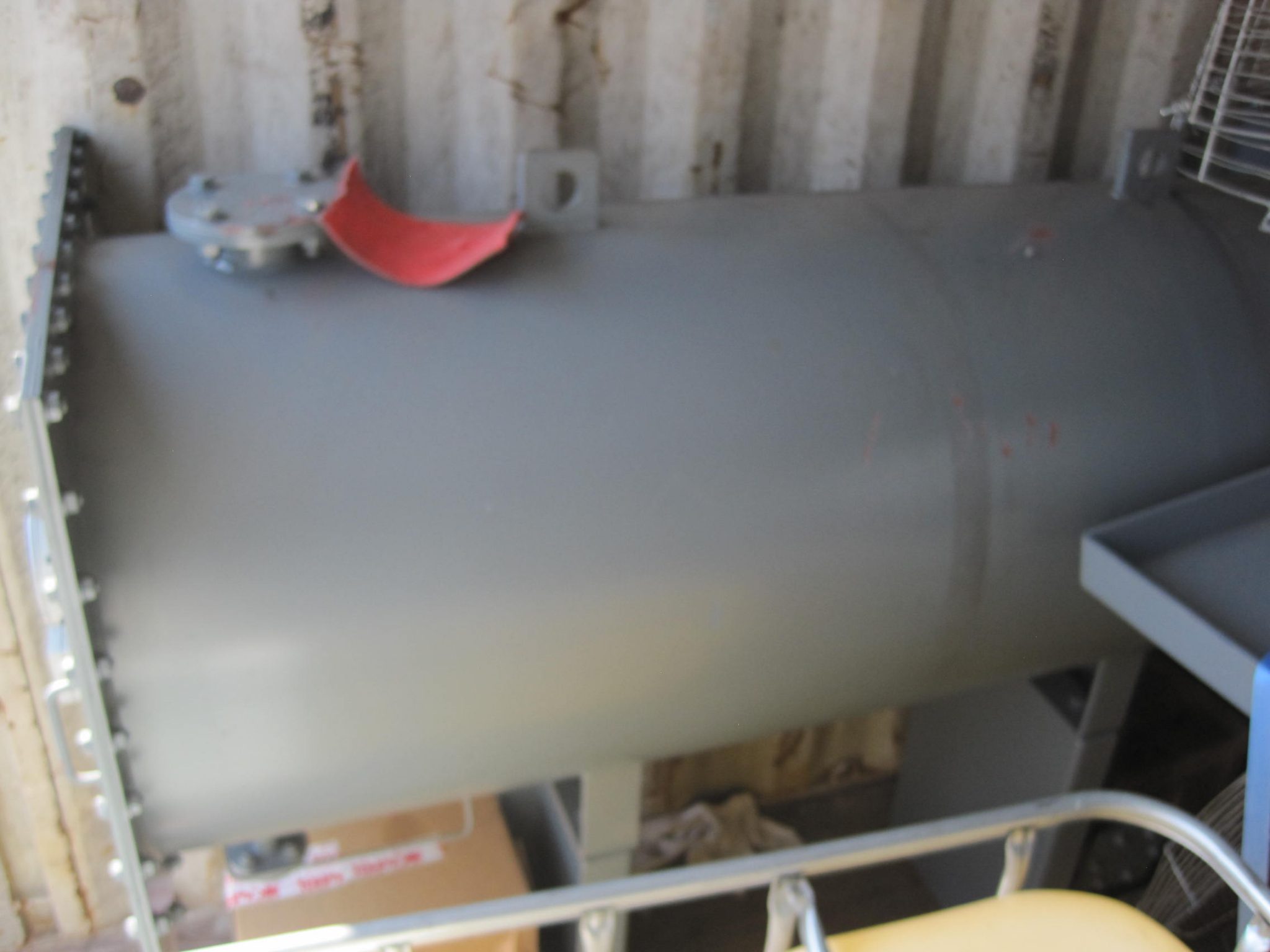

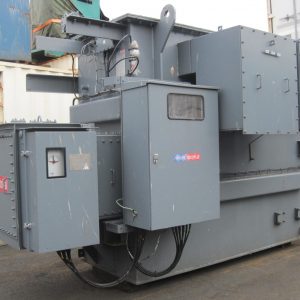

Basic Transformer Concept. Oil-immersed, Conservator tank

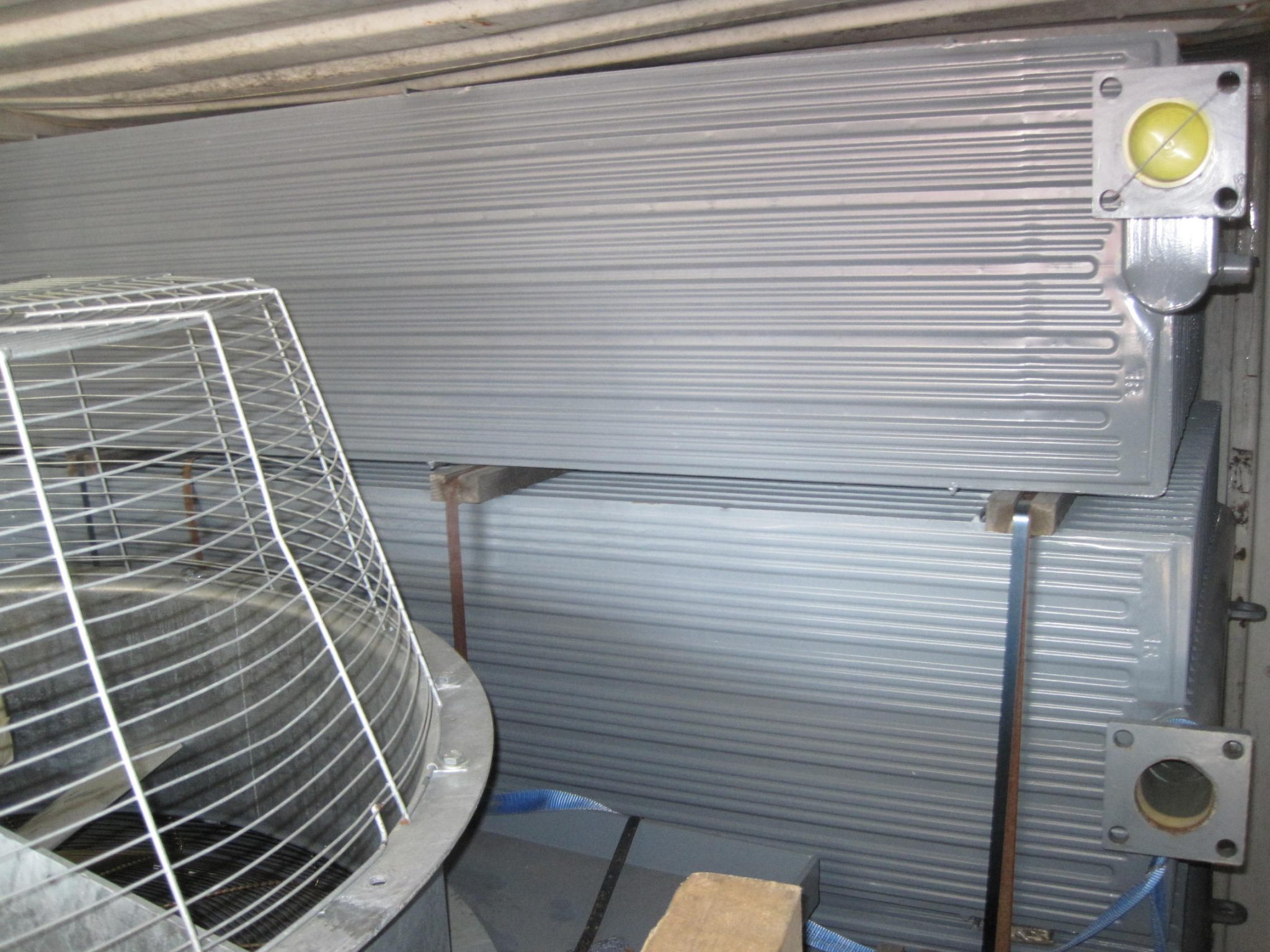

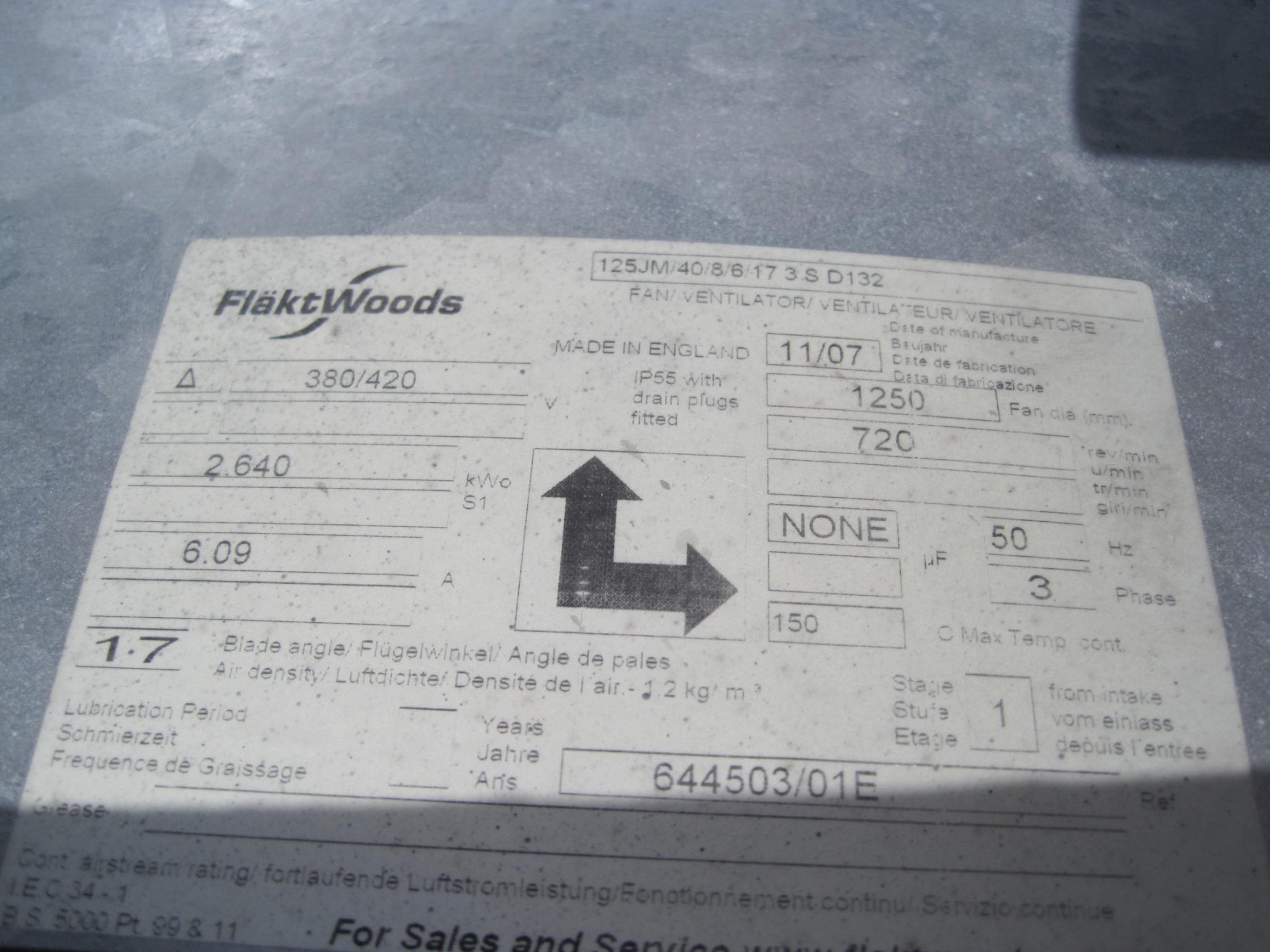

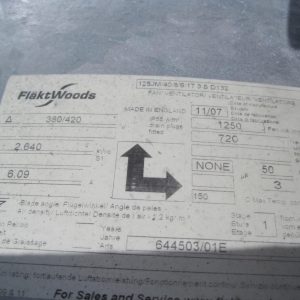

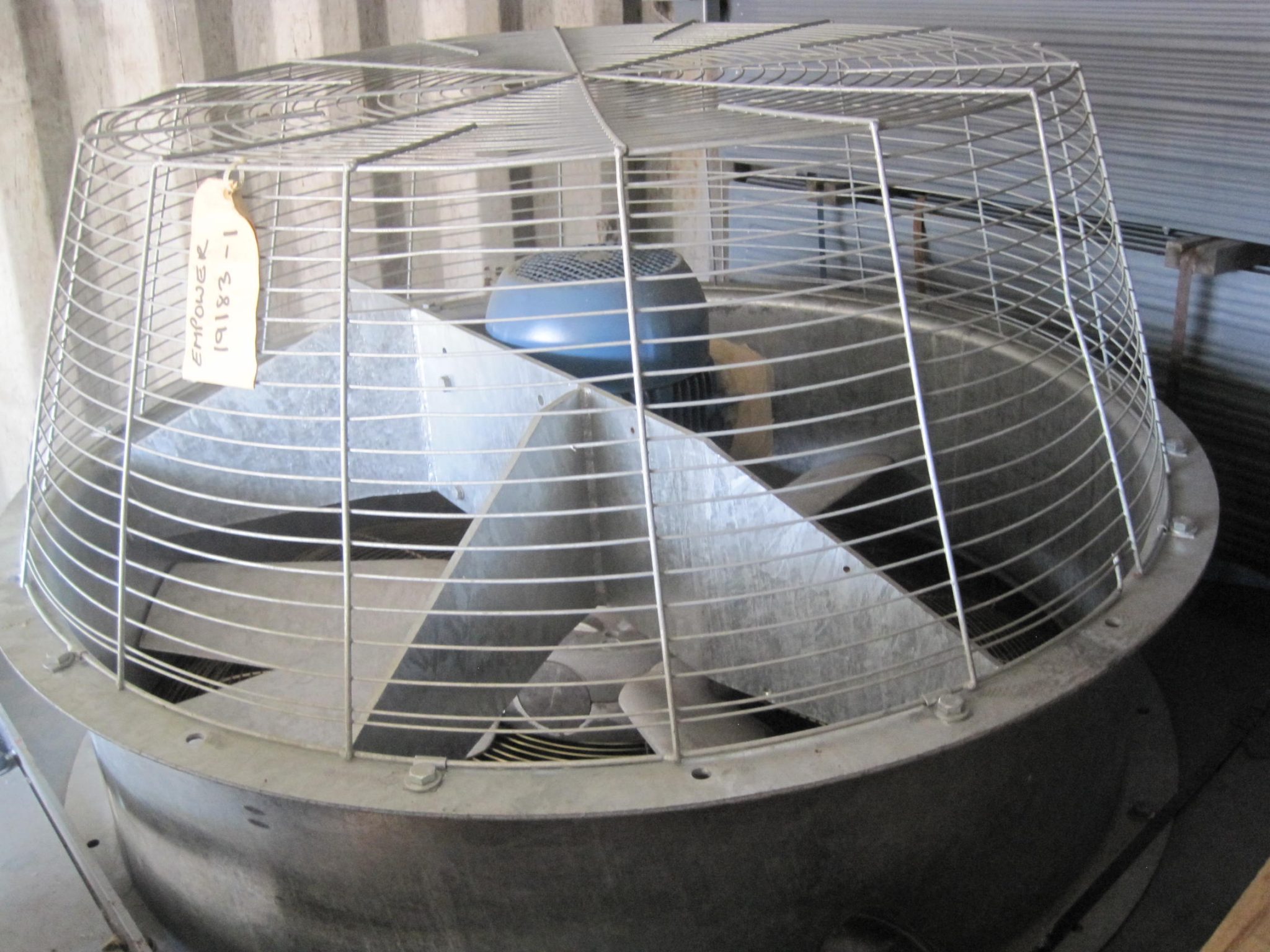

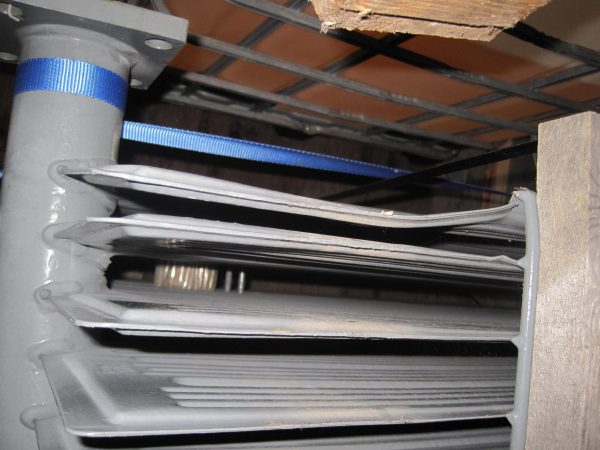

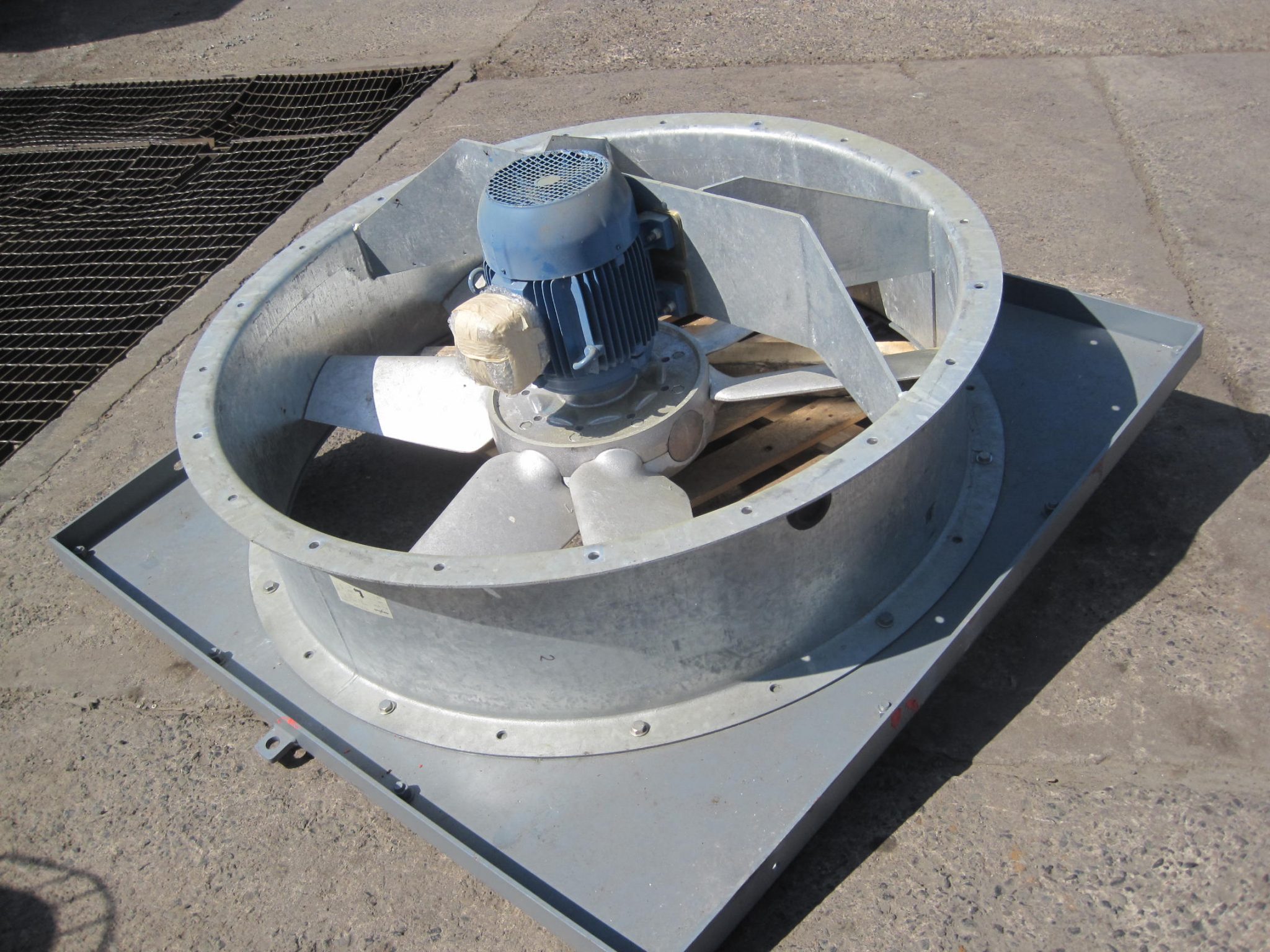

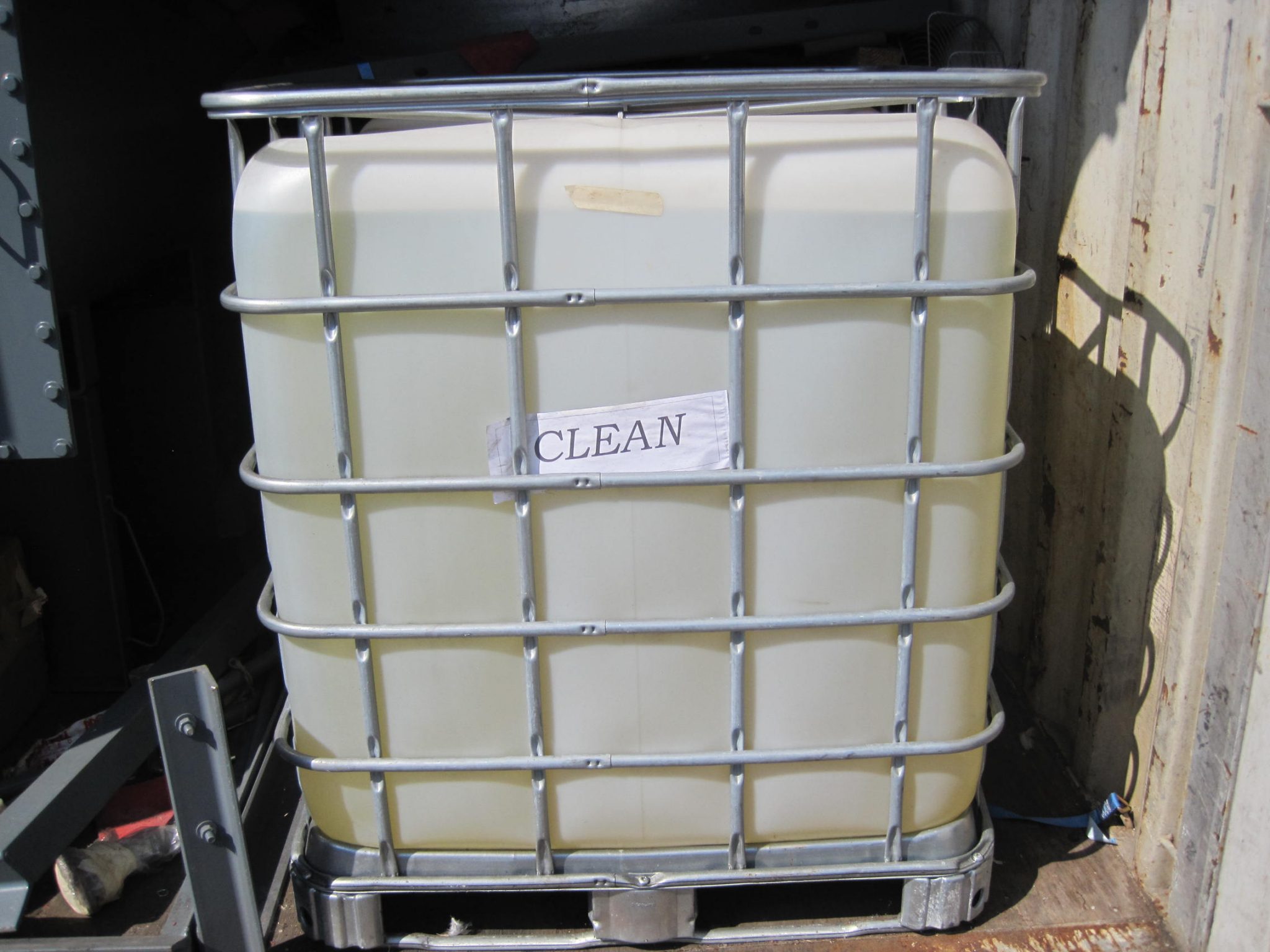

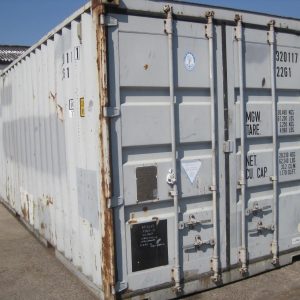

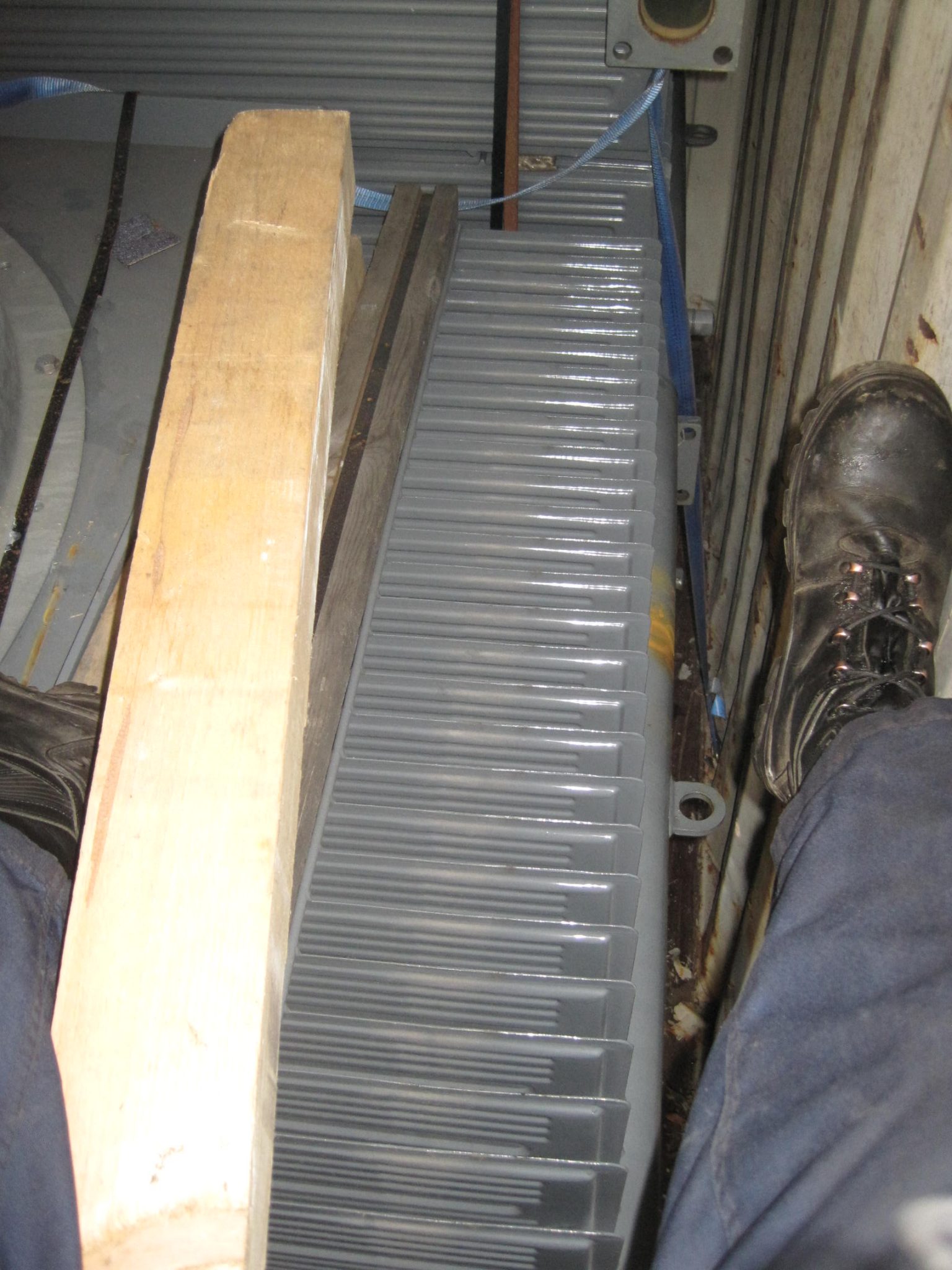

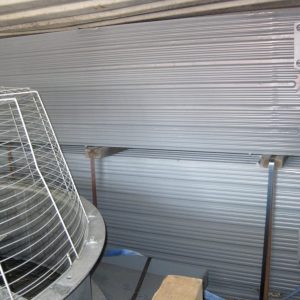

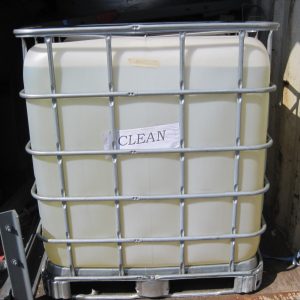

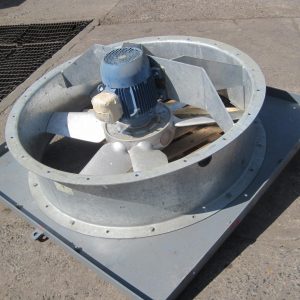

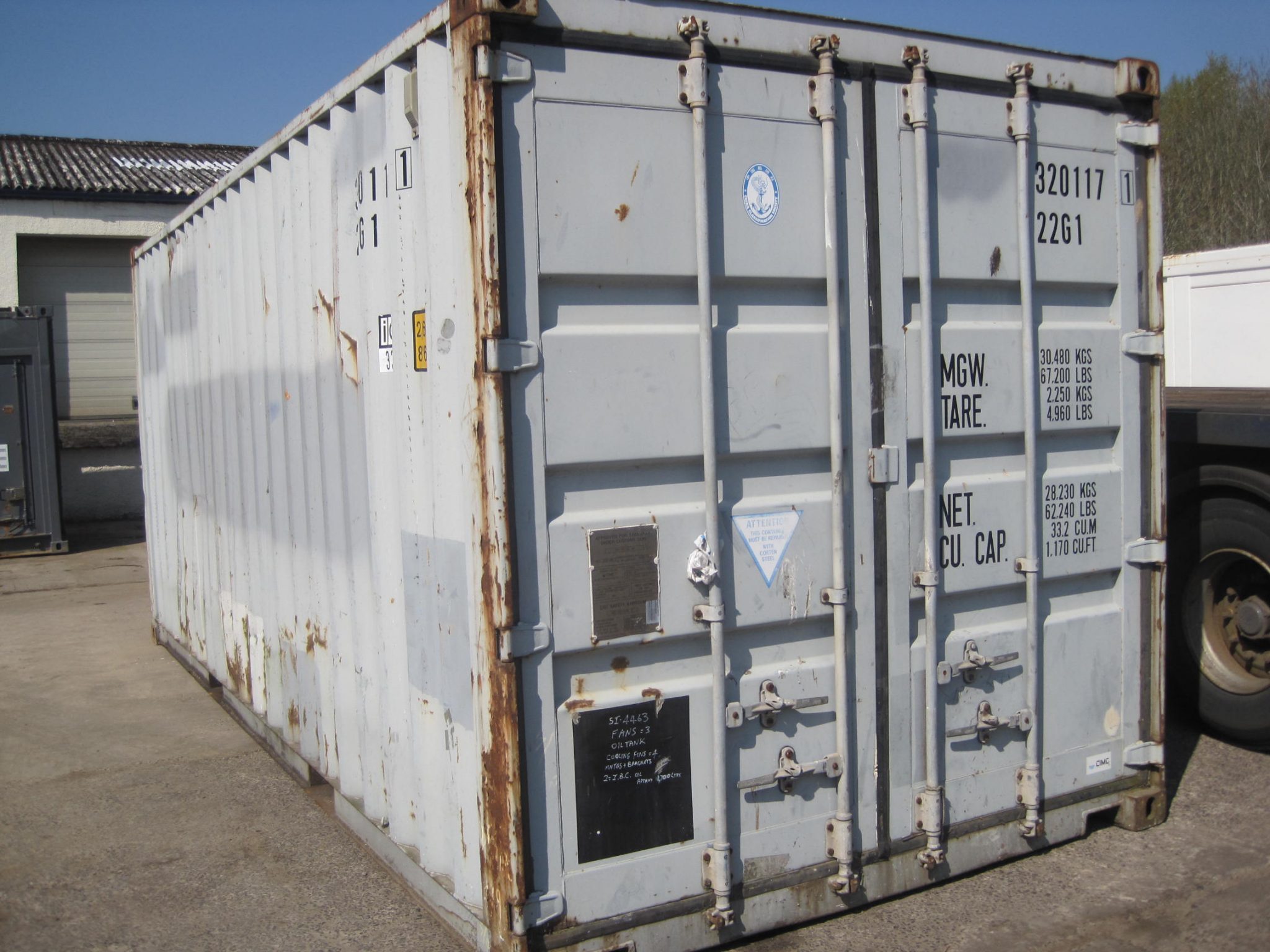

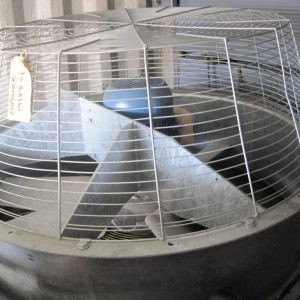

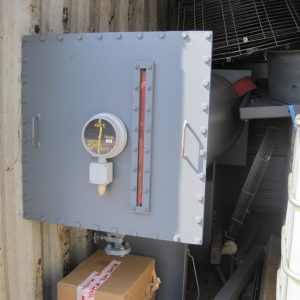

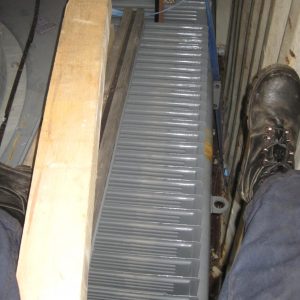

Comes with 3 x Fans, 4 x Oil-Cooling Radiators, 1 x Tank with Mountings and 1700L of Oil in a 20ft Container

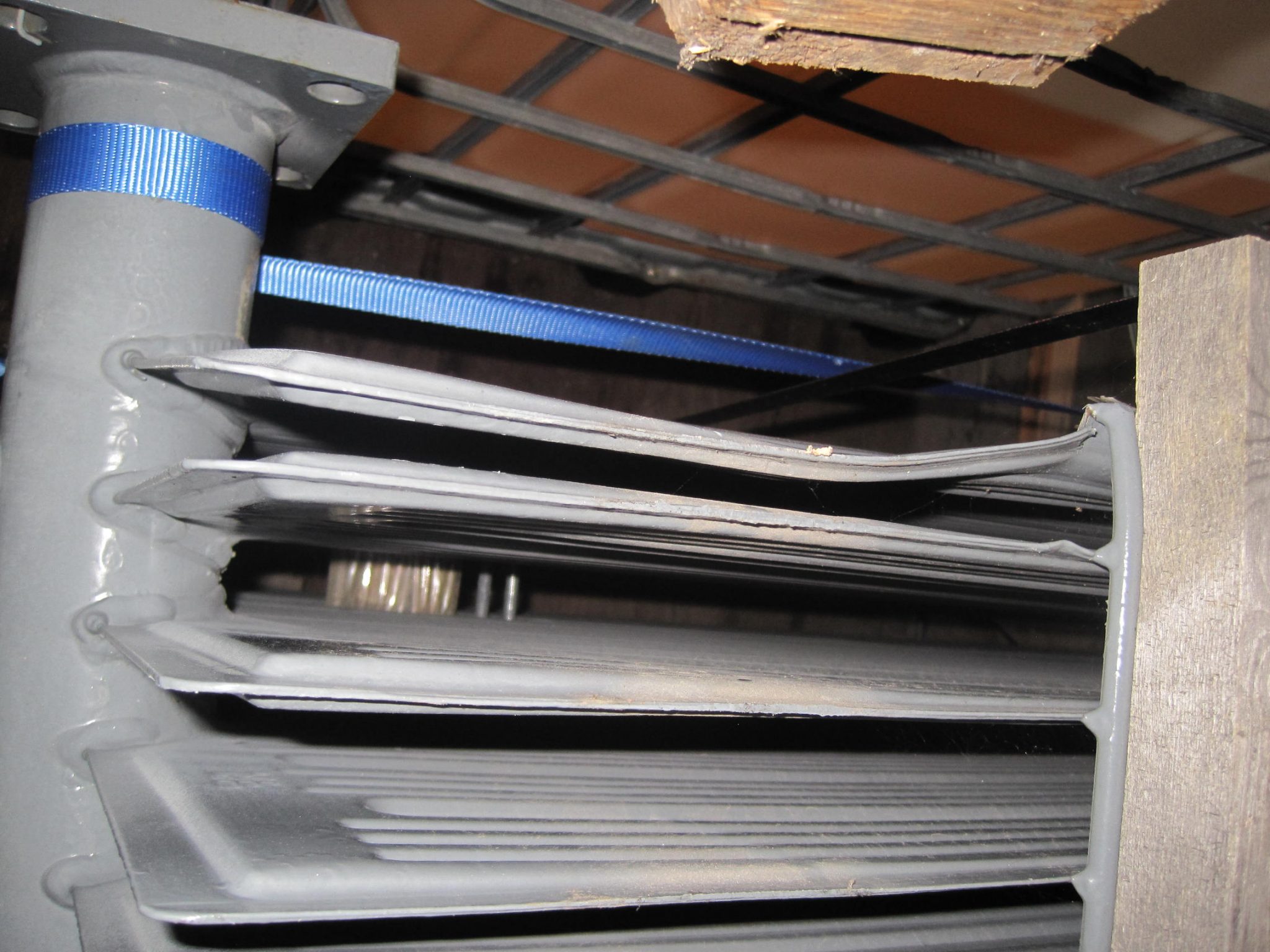

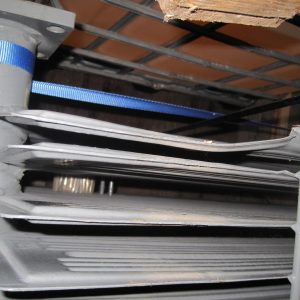

Tank design. Rigid tank, detachable cooling radiators
No. of phases. 3-phase
Rated power. 10,600/16,000kVA
Method of cooling. ONAN
Voltage Ratio. 34,600/11,000V

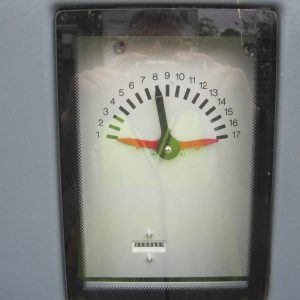

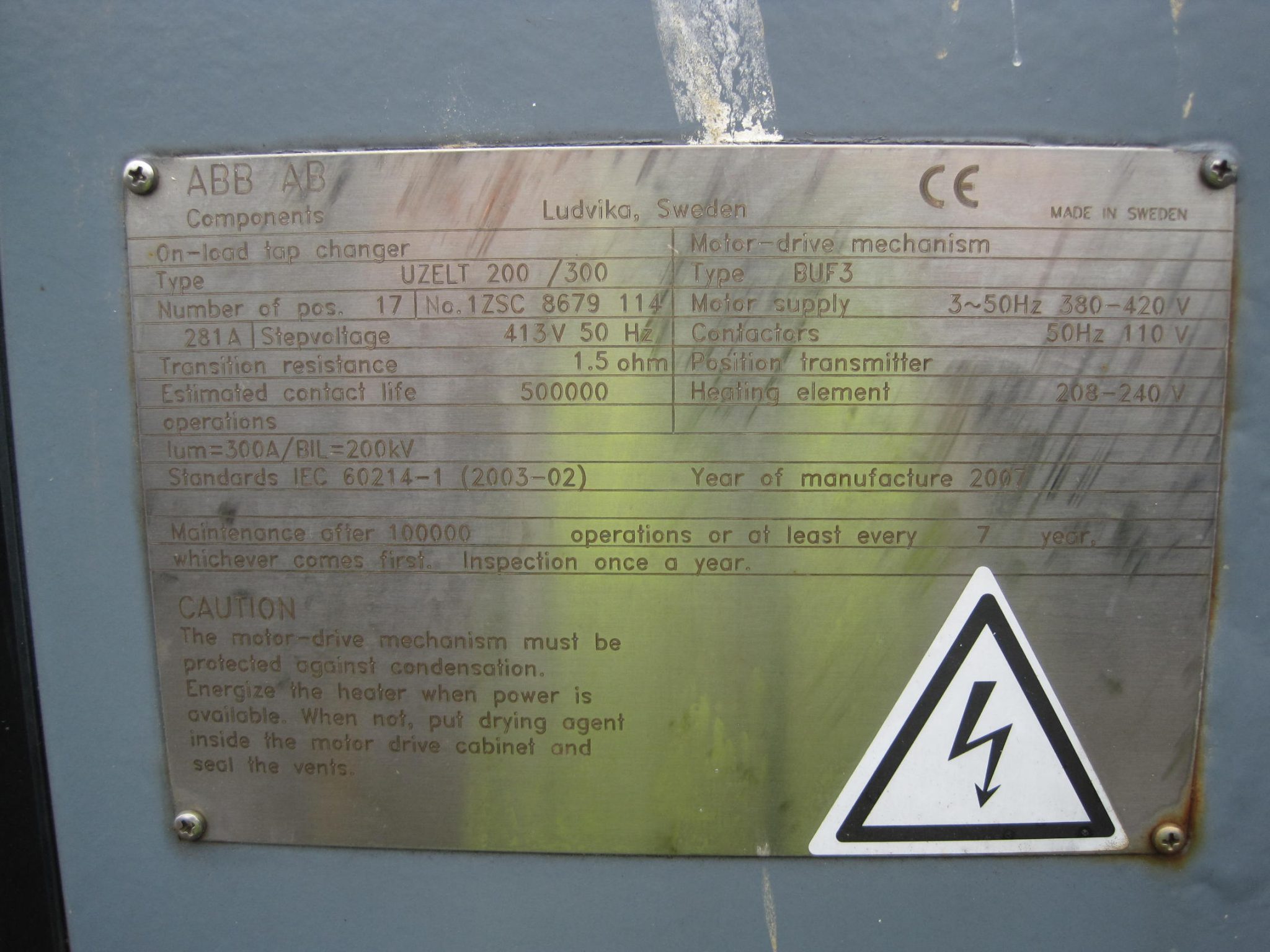

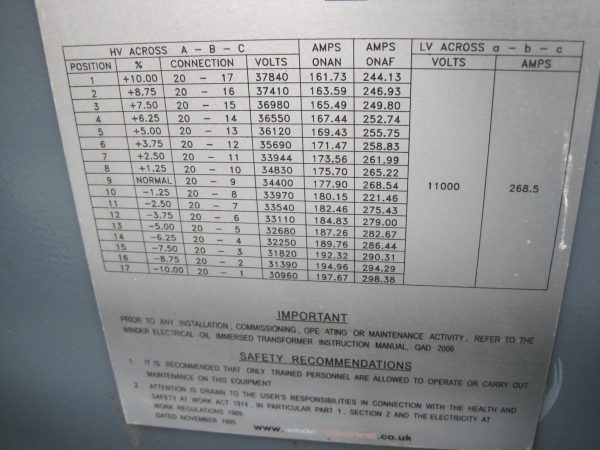

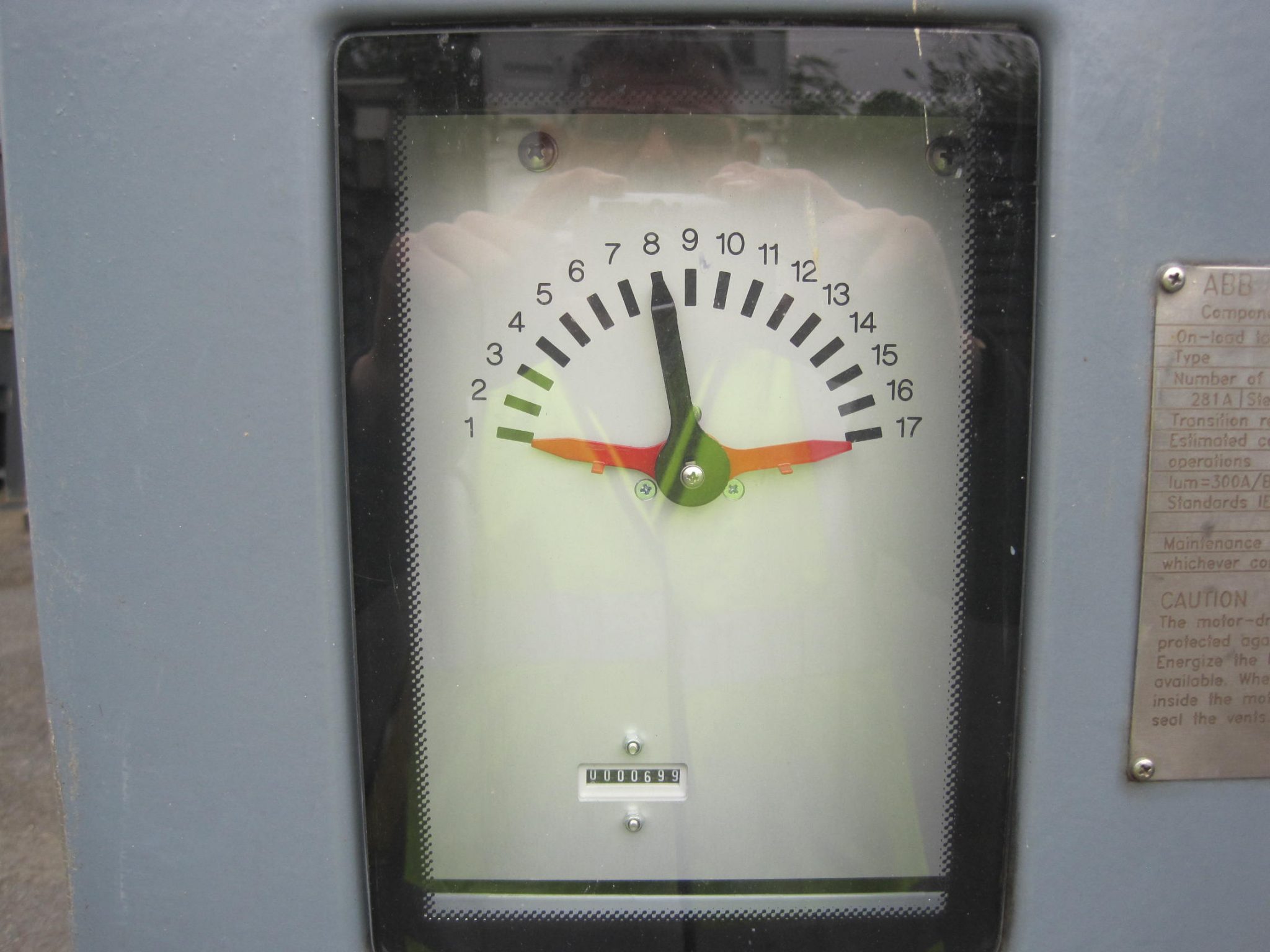

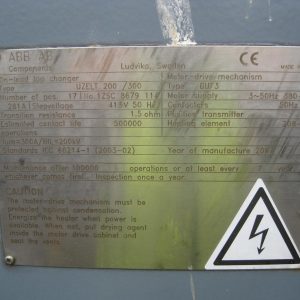

Voltage regulation. Motorized OLTC On-load tap changer in 17 steps.

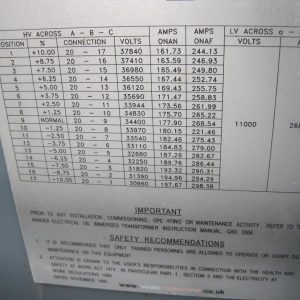

Tapping range. 33,000V +5 -7 * 1.5%
Frequency. 50Hz
Impedance volts. 9.95%
Temperature rise. 50/55

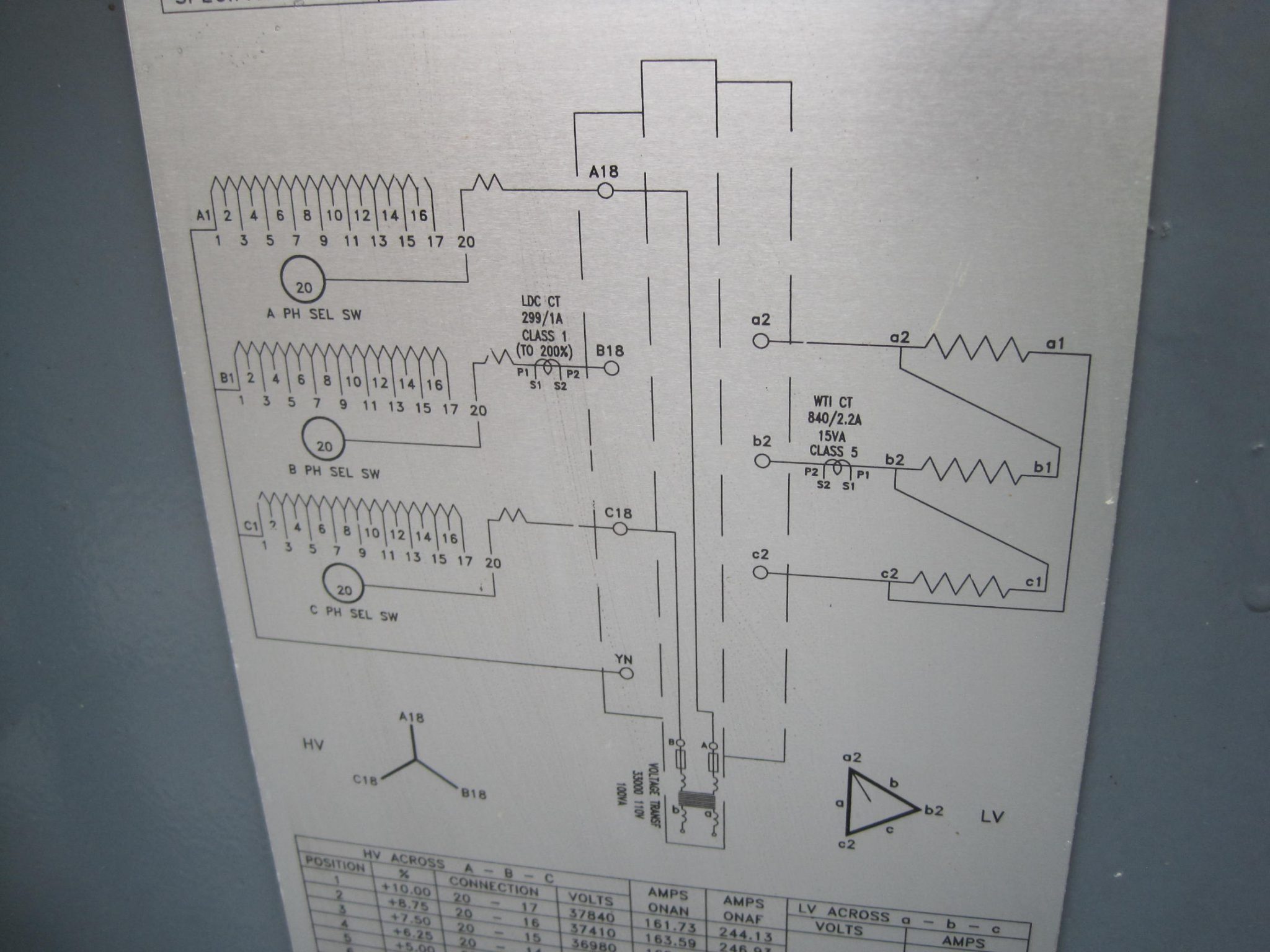

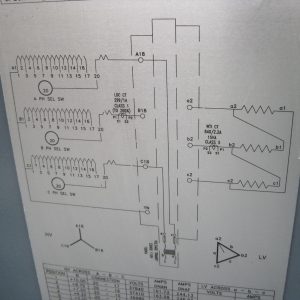

Connection. YNd11
Total weight. 25,100Kg
Core and windings. 10,110Kg
Weight of oil. 7935Kg
Litres of oil. 9080L
