HXT Assembly
Part No. 2340550-07
Serial No. 112993592

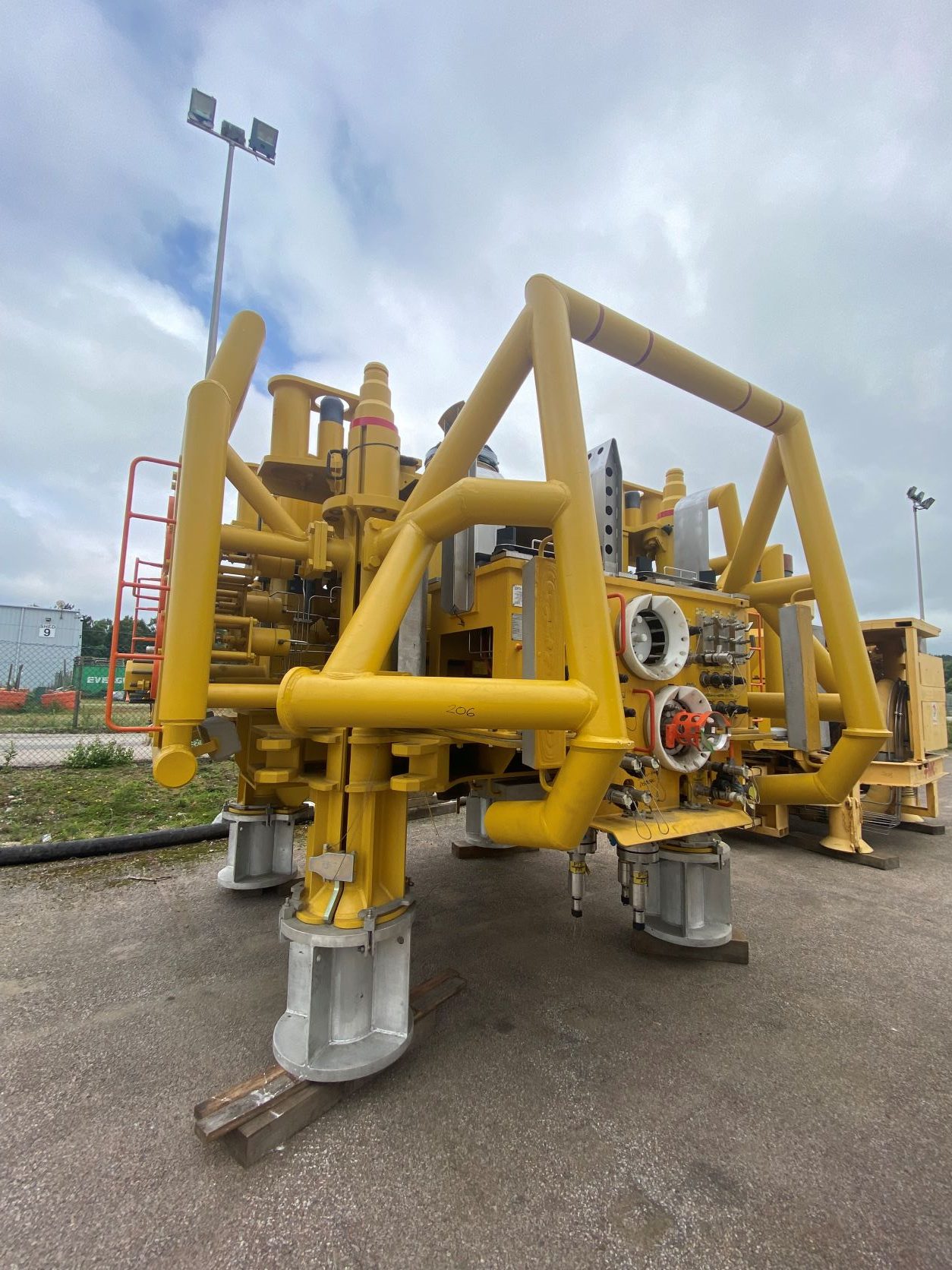

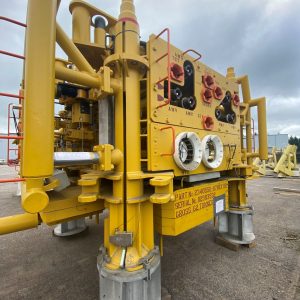

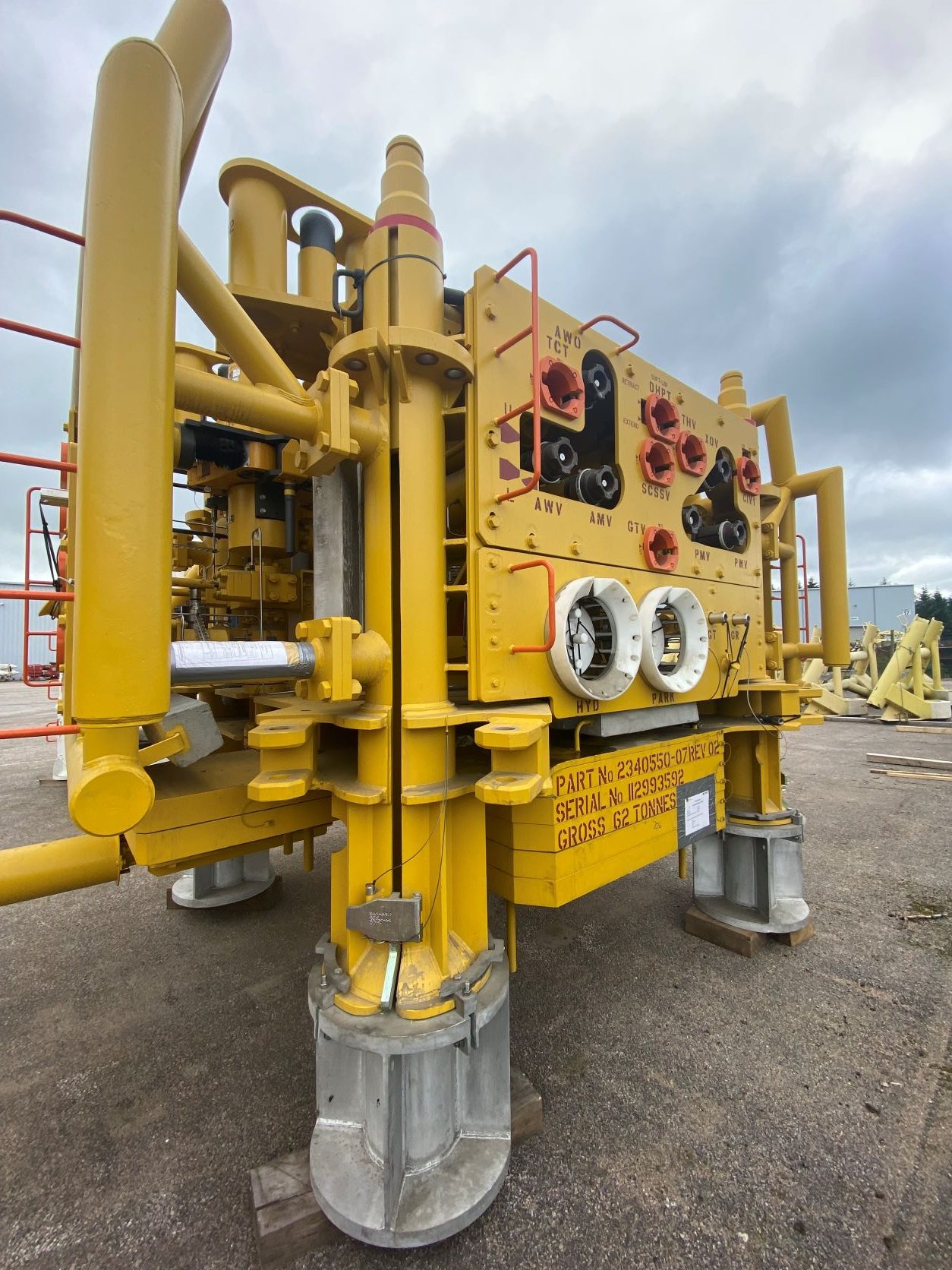

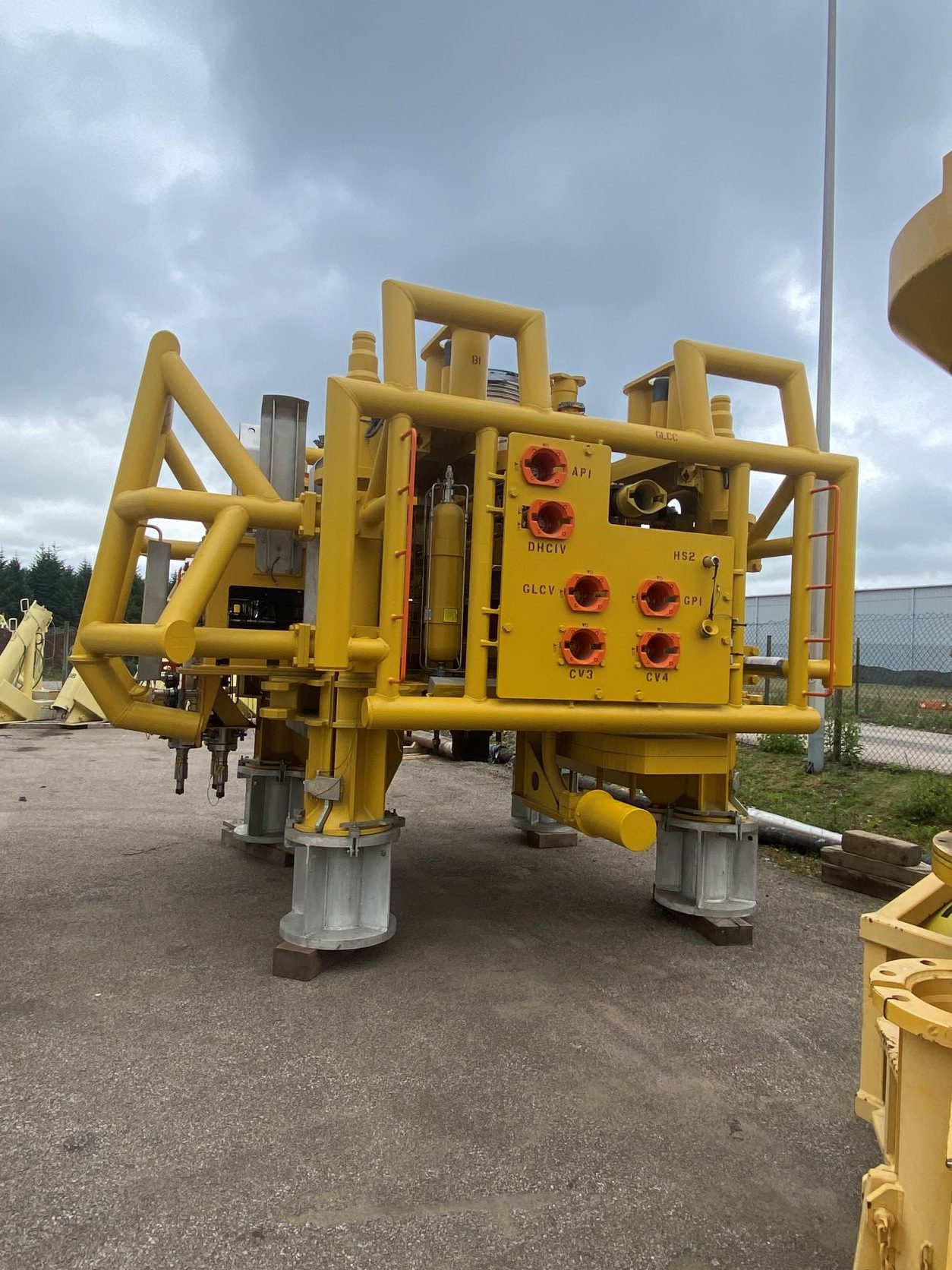

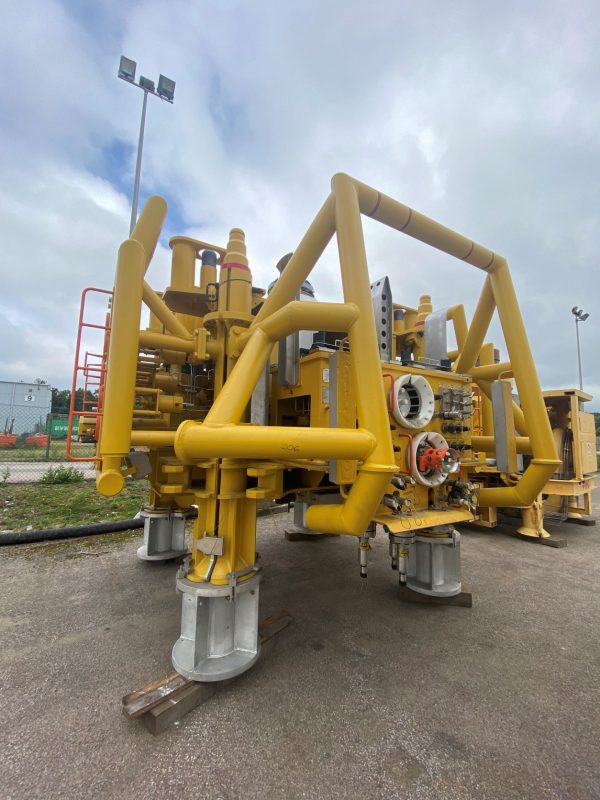

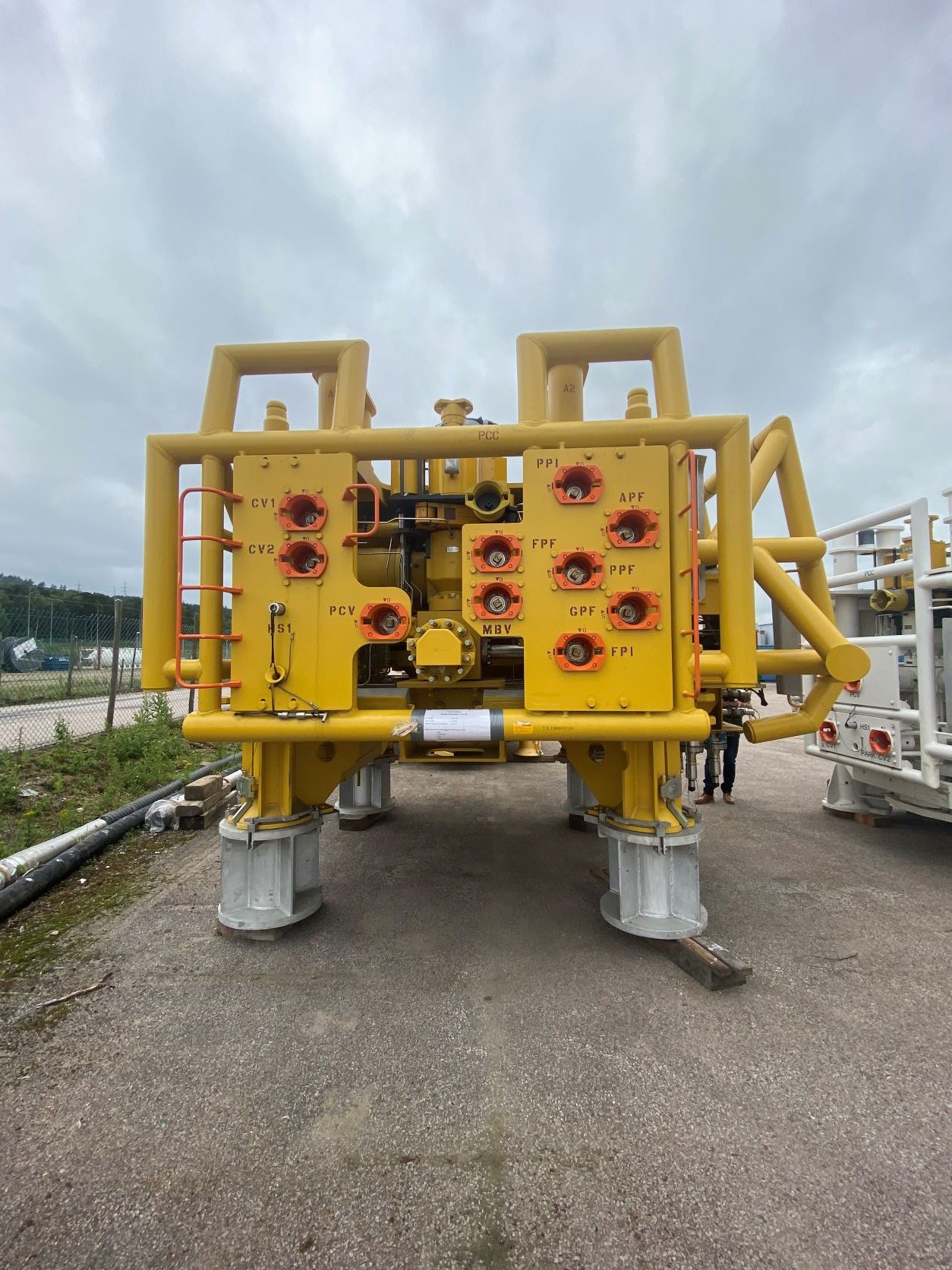

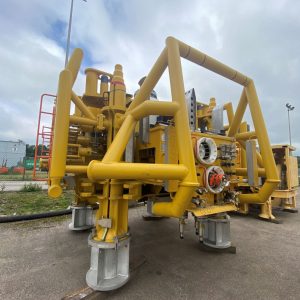

OneSubsea Subsea Horizontal (spool) Xmas Tree (HXT) Assembly,
Production service with annulus gas lift,
API 6A & 17D, PSL 3G,
HH & EE, 0F to 250F,
5in Prod x 2in Annulus,
10Ksi Max Working Pressure,
18-3/4in H4 re-entry profile up,
18-3/4in DWH Wellhead connector btm.
Hydraulic control system with Proserv module mounting base and Brayco SV/3 fluid.
Cameron-Willis CC40SR and CC20SR chokes.
Manufactured 2014, unused.
